DIY - Nano canister filter

By  25 comments

With the impossibility of finding a small canister filter on the market, I decided to make one by myself in DIY version.
All needed parts are from Ebay and cost me about $25 total. Most expencive part was Eheim throttle valve which is needed for flow reduction.
Needed parts:

For filter chasing i have used Lock&Lock 350ml storage container. Very solid build and thick wall:

First step - drilling:

This is 12mm to 9mm 1/4BSP thread air pneumatic elbow quick fitting:


Same for the lid:

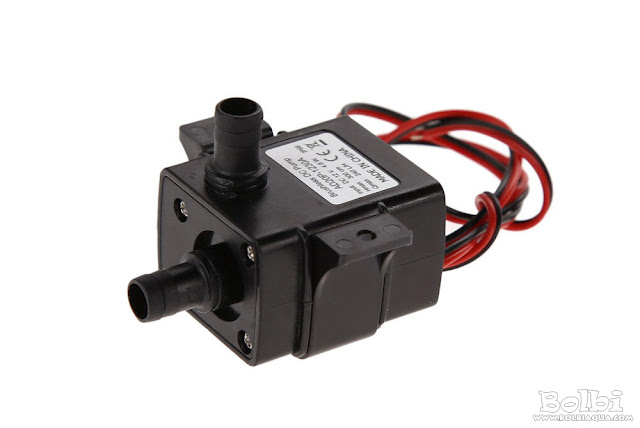

I have used  DC12V 3m 240L/H ultra quiet brushless motor submersible pump:


It is attached to the lid by 10x10 M4 DD type rubber anti vibration mount:




To keep filter material above the intake i have used guard metal mesh for PC computer fan 60mm diameter  AVOID this part, it is not stainless steel - it rust!!! It is better to use some coarse filter material such as ceramic rings as a bottom layer.



Finished product:


I am running this filter on my 1 gallon nano. With reduced flow to 1/3 it doing great job:
